Fuji Elevators
Fuji home lift gearless traction machines for larger residential lifts — 200–400 kg ACVVVF drive cabinet.
Fuji Elevators

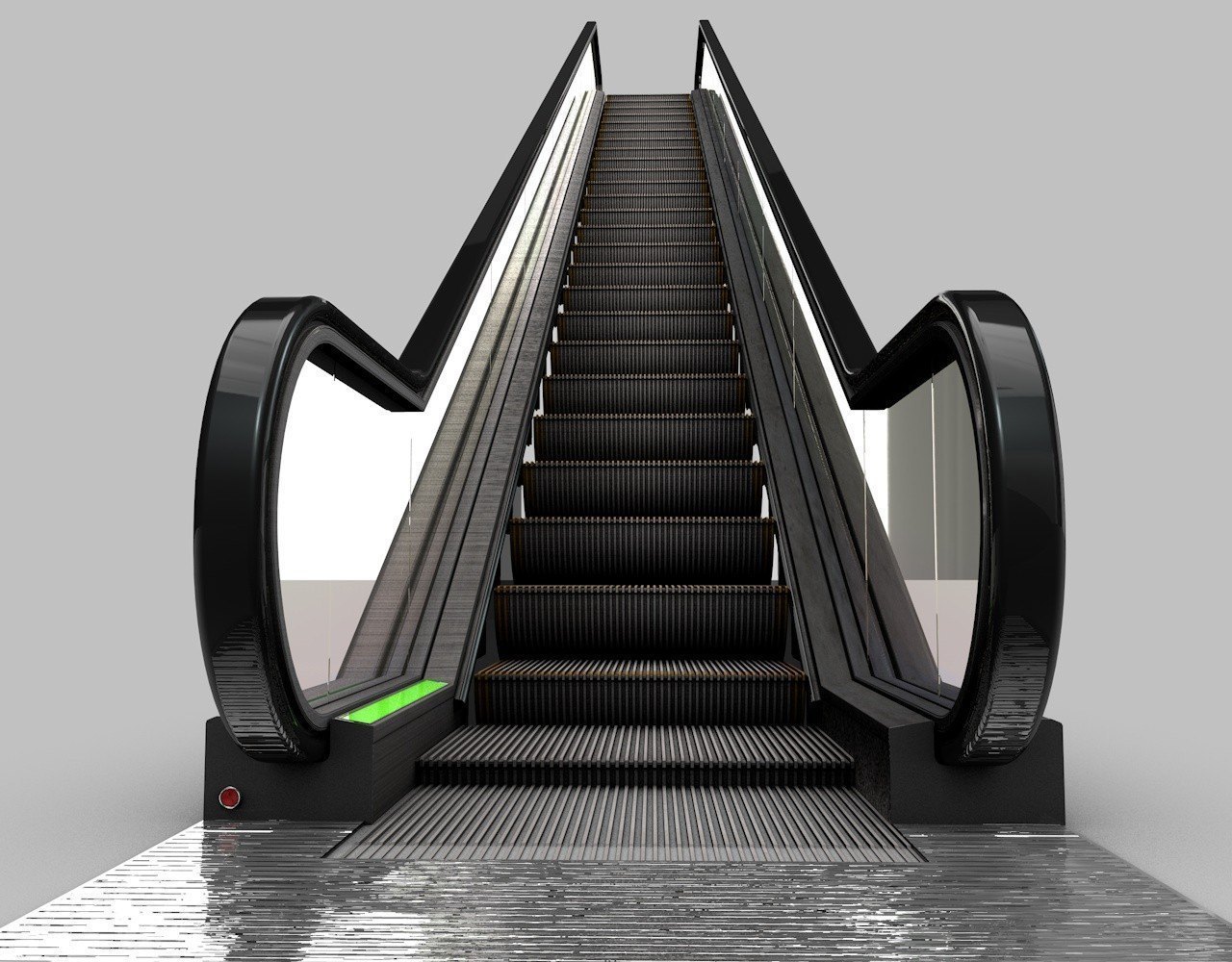

Young Jin Elevator World Class Escalator 30 Degree — engineered for Bangladesh commercial and residential buildings with reliable performance, safety compliance, and local installation support from STAR ELEVATOR BD.
Fuji Elevators
Fuji Elevator World Class Escalator 35 Degree — engineered for Bangladesh commercial and residential buildings with reliable performance, safety compliance, and local installation support from STAR ELEVATOR BD.
Fuji Elevators

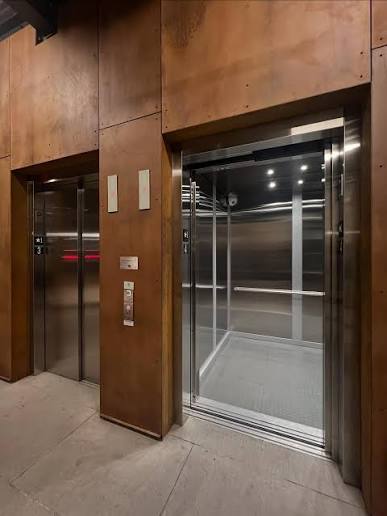

Standard sizing varies by building type and foot traffic:Capacity (kg / Persons)Typical Car Size (W × D)Door WidthRecommended SpeedTypical Building Application450 kg (6 persons)$1100 \times 1000\text{ mm}$$800\text{ mm}$$1.0\text{ m/s}$Low-rise residential / Private villas630 kg (8 persons)$1100 \times 1400\text{ mm}$$800\text{–}900\text{ mm}$$1.0\text{–}1.6\text{ m/s}$Standard apartment blocks & small offices800 kg (10 persons)$1350 \times 1400\text{ mm}$$900\text{ mm}$$1.0\text{–}1.75\text{ m/s}$Mid-rise commercial & residential1000 kg (13 persons)$1600 \times 1400\text{ mm}$$900\text{–}1000\text{ mm}$$1.6\text{–}2.5\text{ m/s}$Stretcher/accessible lift, hotels, office hubs1275–1600 kg (17–21 persons)$2000 \times 1500\text{ mm}$$1100\text{–}1200\text{ mm}$$2.5\text{–}6.0+\text{ m/s}$High-rise towers, hospitals, airports, malls2. Mechanical & Drive SystemsDrive Type: Gearless Synchronous Permanent Magnet (PMSM) Motor with Variable Voltage Variable Frequency (VVVF) inverter control for smooth acceleration and energy efficiency.Machine Room Location:Machine-Room-Less (MRL): Drive sits inside the shaft head room; preferred for modern low- to mid-rise buildings.Traditional Machine Room (MR): Drive located in a dedicated room directly above or beside the shaft; ideal for high-speed/high-rise applications.Door Configuration: Automatic side-opening or central-opening telescoping stainless steel doors.Power Requirements: 3-Phase, $400\text{V}/\text{415V}$, $50/60\text{ Hz}$ mains power, with single-phase $230\text{V}$ auxiliary lighting/control supply.3. Shaft & Structural RequirementsPit Depth: Typically $1100\text{–}1500\text{ mm}$ below the lowest landing floor to accommodate buffer stops and tension pulleys.Overhead Height (Headroom): $3600\text{–}4200\text{ mm}$ from top floor finish level to shaft ceiling.Shaft Tolerance: Plumb within $\pm 25\text{ mm}$ across the entire vertical rise.Shaft Construction: Reinforced concrete or steel frame with fire resistance rating (typically 1–2 hours).4. Essential Safety & Operational ControlsAutomatic Rescue Device (ARD): Battery-operated emergency system that safely lowers the lift to the nearest floor and opens doors during power outages.Infrared Door Curtain: Full-height light sensor beams to prevent doors from closing on passengers.Overload Protection: Visual and audible alarm that holds doors open if maximum weight is exceeded.Safety Gear & Governors: Progressive mechanical safety gear triggered by overspeed governors to lock the cabin onto guide rails if cable failure occurs.Firefighter's Emergency Operation: Returns lift directly to the main exit lobby upon signal from the building's fire alarm system.5. Compliance & International StandardsEN 81-20 / EN 81-50: European safety rules for lift construction and testing.ASME A17.1: Safety Code for Elevators and Escalators (North America).ISO 8100: International standard for lift design, safety, and performance.Accessibility Standards: ADA (US) / EN 81-70 (EU) specifying tactile/Braille buttons, voice synthesizers, handrails, and minimum doorway widths ($800\text{ mm}$ clear opening).
Fuji Elevators
A cargo elevator is a heavy-duty vertical lift designed to transport heavy goods, machinery, and pallets safely between different floors of a building. Built with reinforced steel and advanced safety systems, it offers high load capacity and rugged durability for daily industrial use. This makes it an efficient and reliable material handling solution for warehouses, factories, and commercial spaces.
